Biomass
Bunker filling

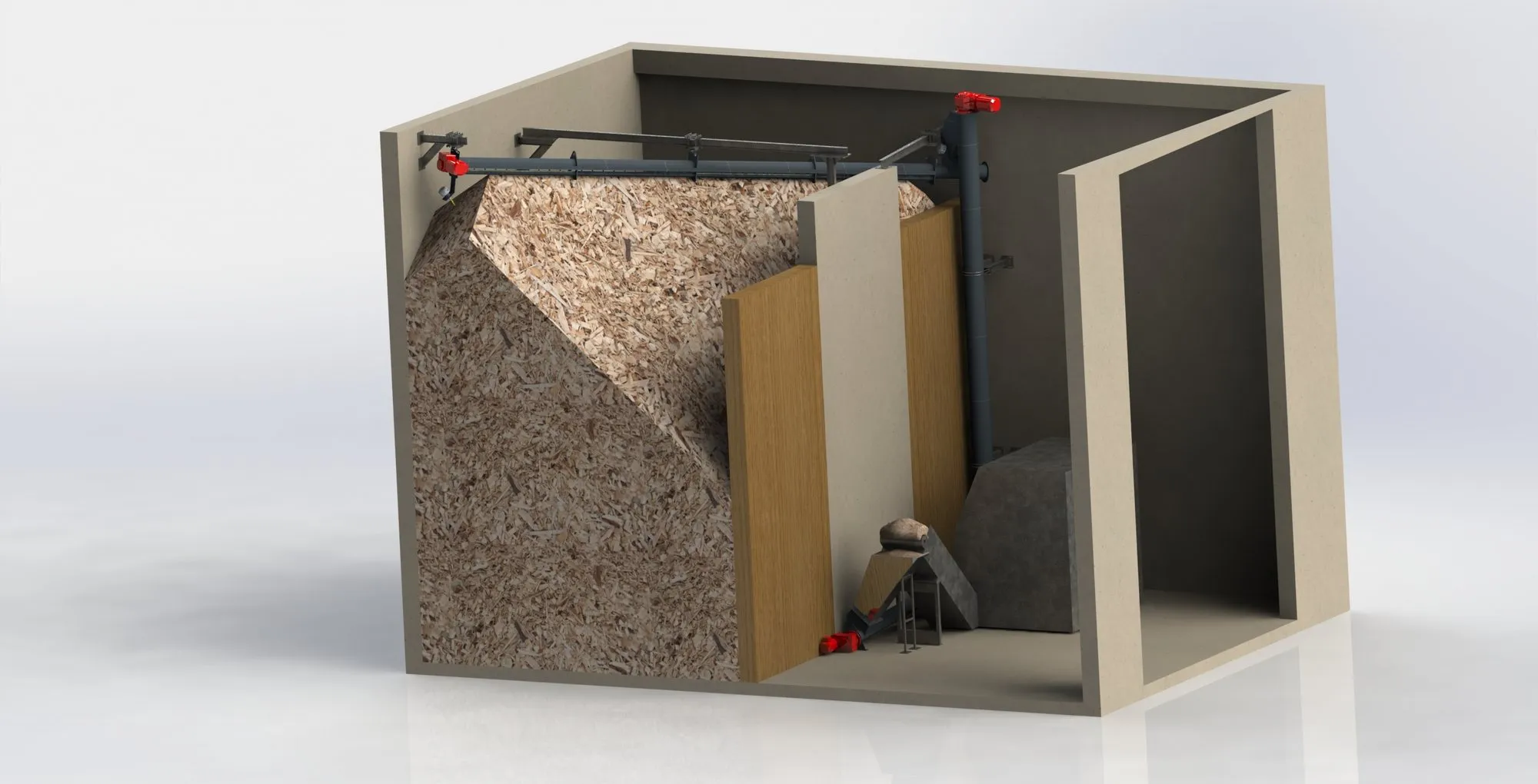

Material taken from the intake hopper and conveyed vertically into the bunker — up to 28 metres with no transfer station.
- Lift
- 28 m

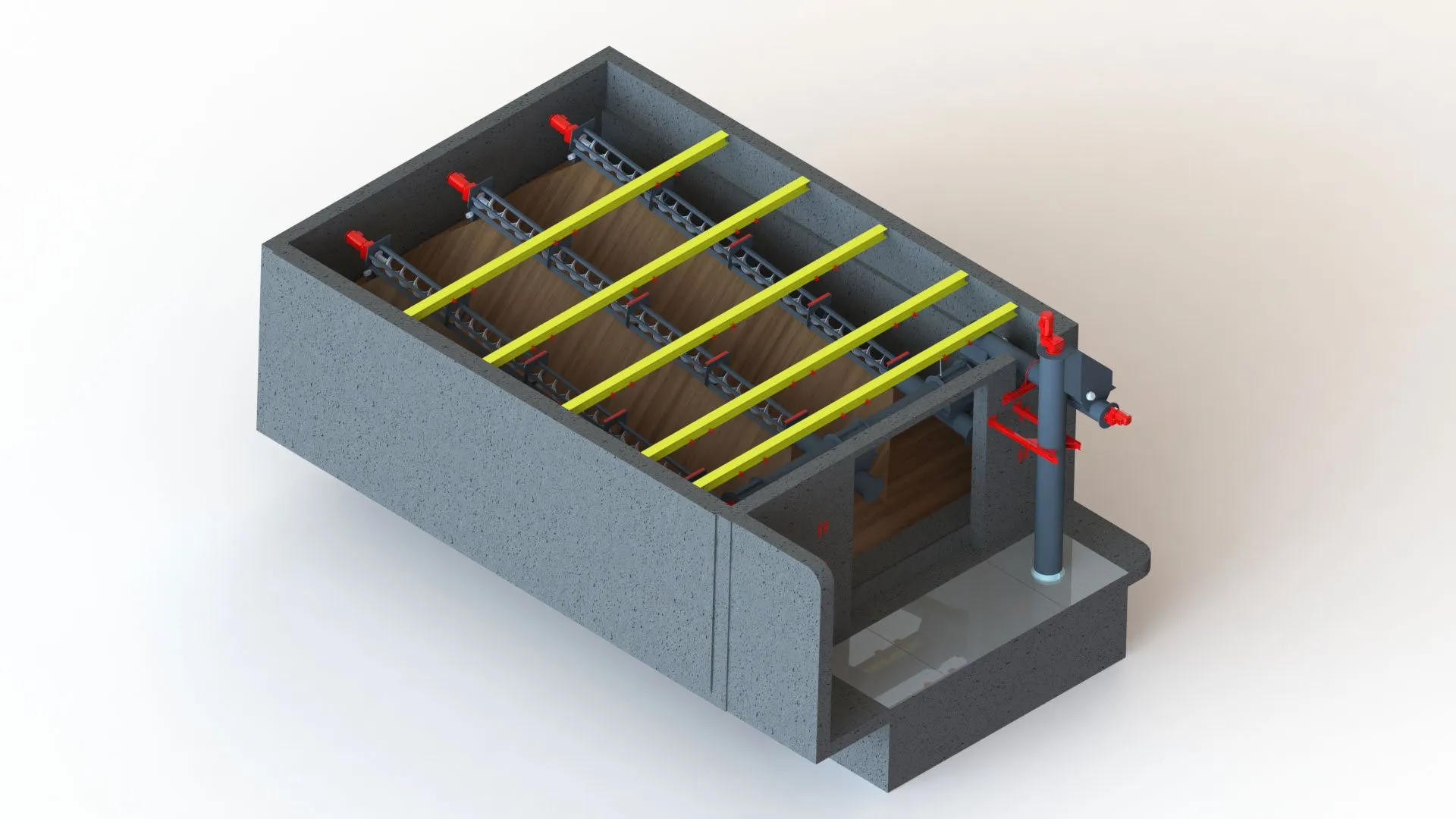

The material is taken over by a horizontal trough conveyor with an intake hopper. It can stand above floor level or be recessed into the ground — depending on how deliveries arrive.
Where the intake trough is recessed, we build the guard gratings as heavy-duty gratings on request. They then take vehicles with axle loads of up to 10 tonnes, so tipping directly over the intake is possible.
The vertical conveyor that follows lifts the material up to 28 metres. Because the same shaftless spiral works both horizontally and vertically, the transfer station between the two sections is unnecessary — and with it the most failure-prone point of such a system.
Safety equipment to the applicable European standards is supplied with the system, as are covers protecting against the weather.
- 01
Intake to suit your deliveries
Above floor or recessed, with drive-over heavy-duty gratings up to 10 t axle load.
- 02
Horizontal and vertical in one line
No transfer point between intake and lift conveyor.
- 03
Weather protection
Covers for outdoor installation are part of the scope of supply.

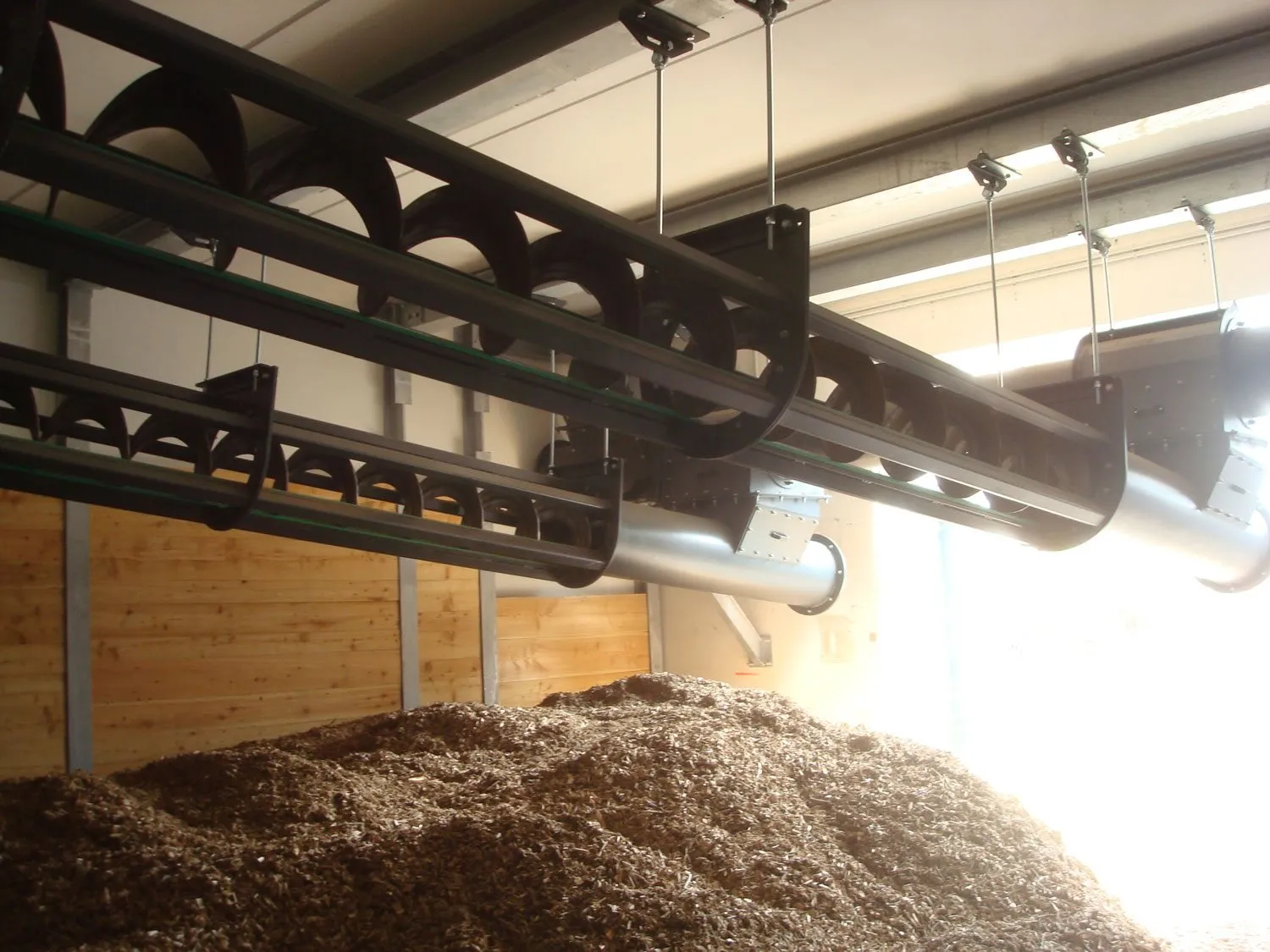

From the installation
Further tasks from Biomass
- Silo fillingFilling silos via horizontal intake and a vertical conveyor — in service in plants over 20 metres high.
- Moving floor dischargeTaken from the hydraulic moving floor across the full width of the store and passed on to the downstream system.
- Pellet screw and pellet conveyorMoving finished pellets from the store or big bag to the boiler — and, in a pellet mill, conveying within production itself.
A similar task at your site?
Every system is a custom build. Describe your material and your route.
